Byrd Tern (Composite Materials)

---

A set of replacement scales to fit the Byrd Tern in 3mm & 5mm Composite Materials.

(Photo's to Follow)

Cnc cut & hand finished to achieve a perfect fit and feel,

---

Available Materials :-

Compost scales are made from a wide array of composite materials like Carbon Fibre, G10, Ultem 1000 and Micarta, please add your preference and colour requirements to the special instructions section,

---

Micarta Scales can be produced in a wide variety of materials and colours including :- Denim Micarta in various colours, Linen Micarta in various colours, Canvas Micarta in various colours, Jute/Burlap Micarta in various colours, as our Micarta is made in house there are too many combinations and colours to list so it is best to ask if you are not sure what you want, but here are a few photos of recent work,

If you would like to supply your own material to make the Scales (eg ;- G10 or Micarta) them please select "Free Issue Material" and a price reduction will be applied, Then please send in your material with a note referencing the order number,

---

CnC cut Patterns :-

Carbon Fibre G10 and Micarta Scales can be Cnc cut with the following patterns :-

(photos to follow)

Fluted Large or Fluted Small, Frag Large or Frag Small

Other patterns can also be cut on request.

---

Available finishes :-

• Matt finish :- (edges de-burred and ground with the surface dressed to 1000 grit to achieve a fine matt finish, ).
• Polished stage 1 :- (edges de-burred and ground with surface wet sanded to 2000 grit then 1st stage polished via a rotary mopping wheel to remove all but the lightest scratches and blemishes, may require further hand polishing for perfect finish before installation).
• A 2k Clear coat gloss finish can be applied to achieve a higher Gloss level and for greater durability,
• Side profile finish selectable from Flat grind, 1mm Chamfered or 2mm Round over,

• V2 Ergo Scales do not need a side profile finish as this is included in the design so leave it as flat grind,

---

Will be supplied with Belt clip pocket on both sides(as std) or without (Via the options panel), there is also an option for single sided left or right.

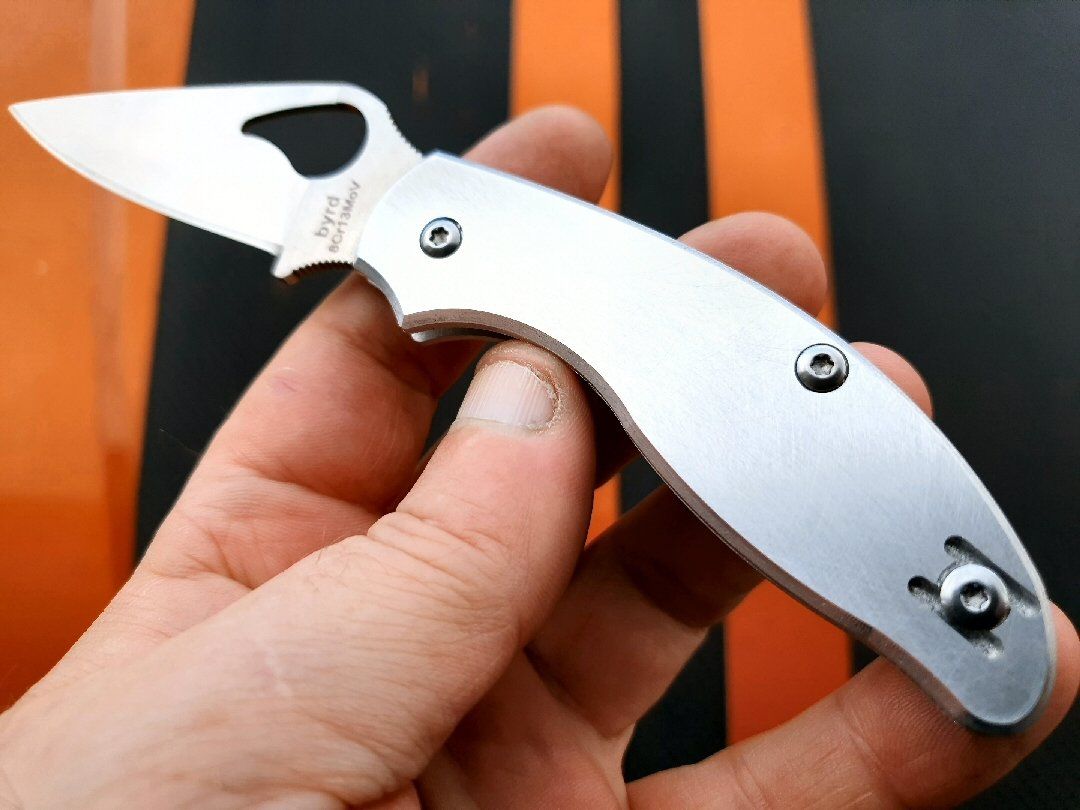

Blade shown for reference (not supplied).

This item is designed for self installation.

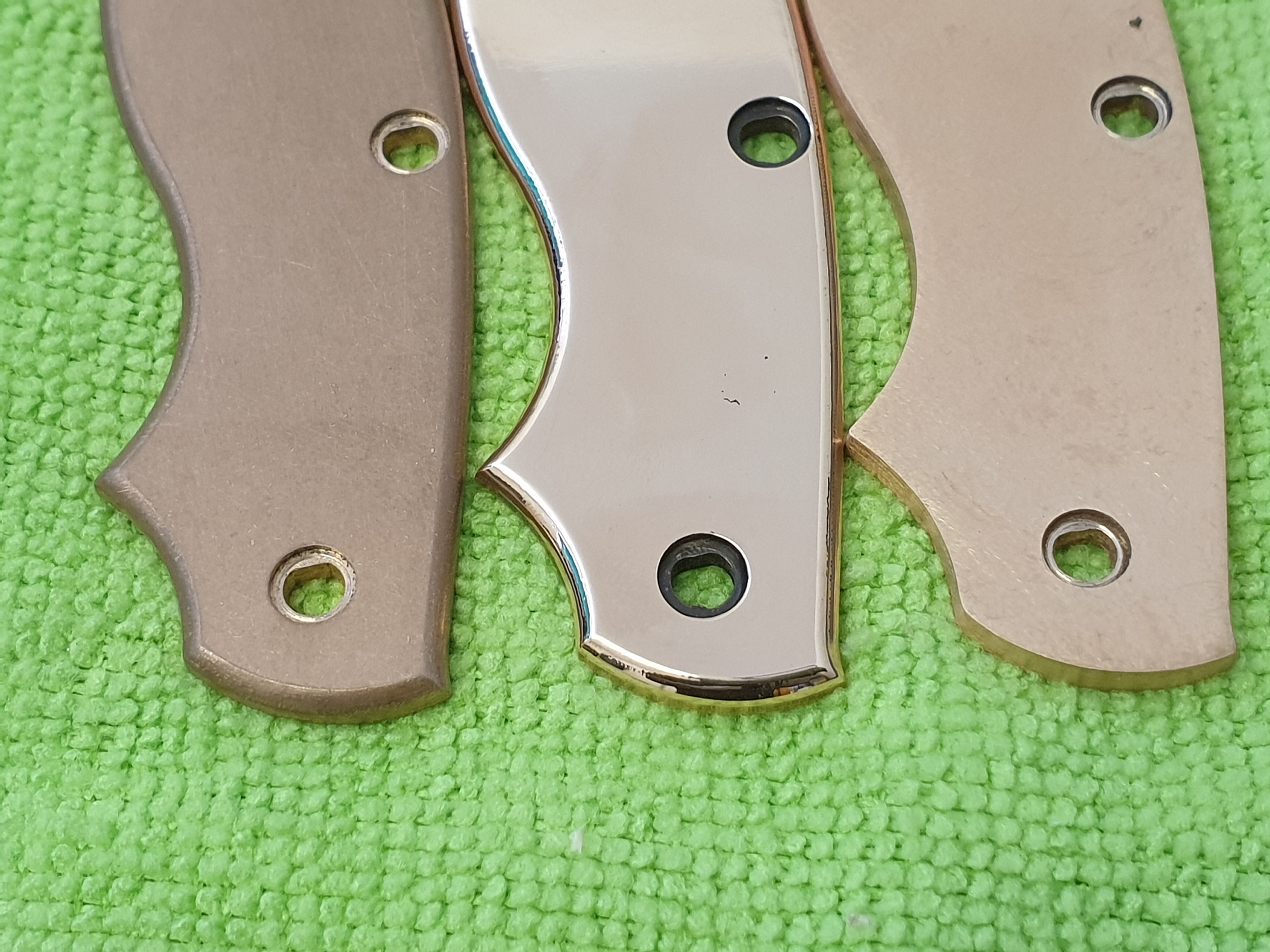

Brass Copper and Titanium UKPK shown for reference only
