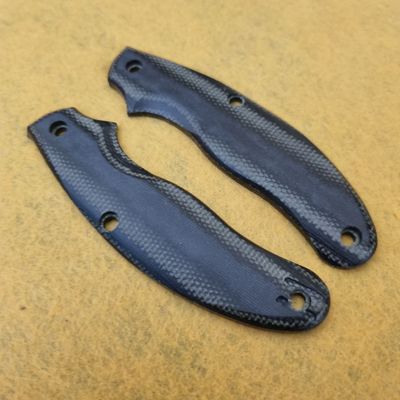

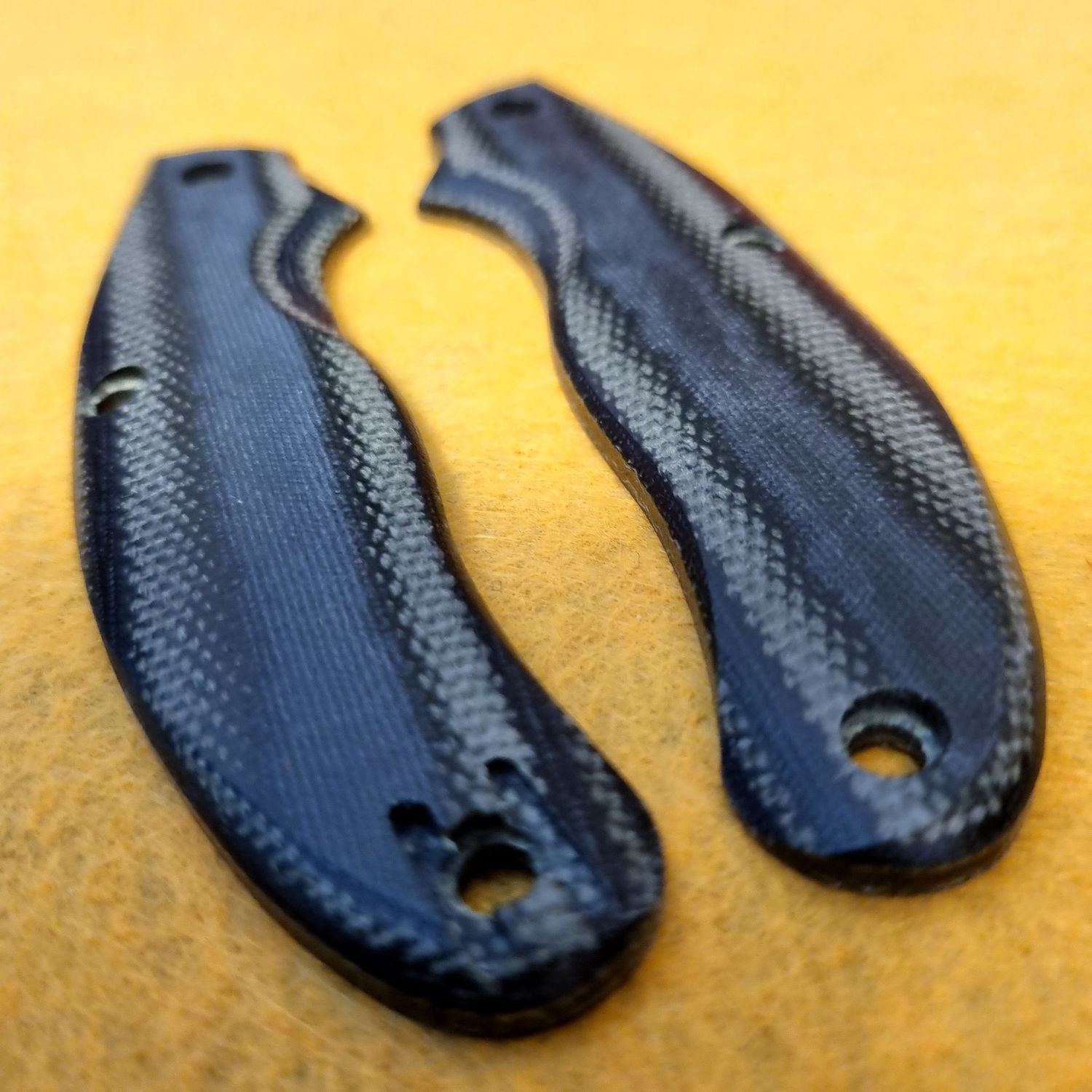

UKPK V2 Ergo 5mm 3 pin Scales in Black/Green Canvas Micarta

A set of replacement V2 Ergo 5mm 3 pin Scales in Black/Green Canvas Micarta

These are my newly designed V2 Ergo Scales that incorporate 5mm Scales with all edges rounded over,

The Pivot D Pin is secured via a 1mm Brass locking washer and the back spring can be adjusted using the supplied concentric cam, A bottom 10mm round matching spacer is supplied (other bottom spacers can be found on the EDC Accessory page ),

All these improvements give the scales a more traditional feel and fit,

Belt clip pockets have been cut on the right hand side,

These Scales will be manufactured in small batches and sold from stock so no pre-orders necessary,

The Scales use the existing hardware and are supplied with 2 x 0.2mm phosphor bronze washers,

The screw holes are D shaped to take the D shaped barrel pins.

Blade and hardware shown for reference (not supplied).

Bottom Back Spacer shown for reference (not Supplied but can be purchased from the accessory pages).

This item is designed for self installation.
